DIN Standard 2503 PN25 Plate Flanges Nominal Pipe Size 10-1000

Product Details

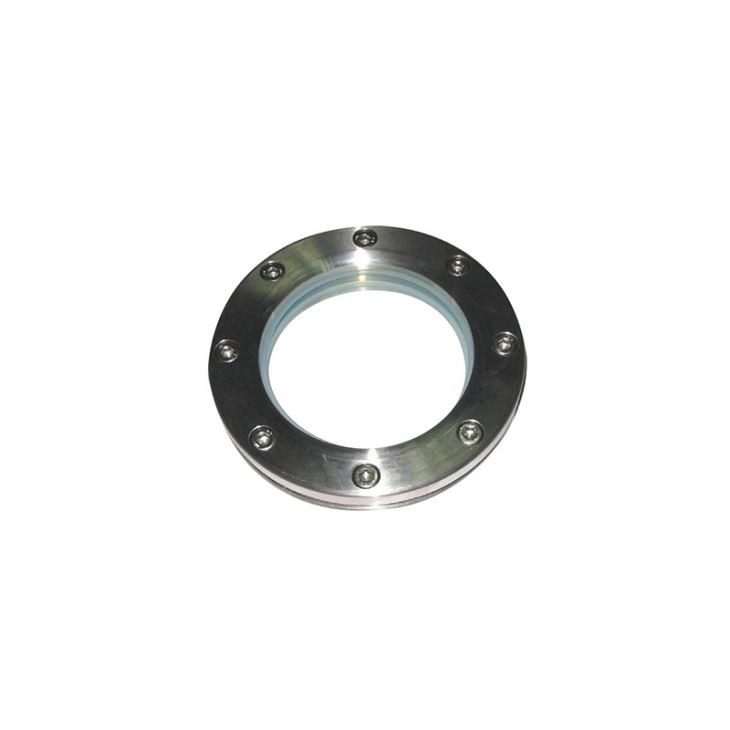

EO Flanges can provide DIN 2503 PN25 Plate Flanges, which Diameter of Bolt Circle from 60 to 1210 mm, Weight from 0.69 to 255.79 kG, etc. The flange is the two plate surrounding the use of bolts and connecting parts closed, 2503 DIN PN25 flange products, we mainly in forging flange as the main products, and we also do the United States, Russian, Germany, a series of products. Our complete quality management system, get a lot of customers. Willing to develop with our customers together

Germany standard flange DIN 2503 for soldering or welding Nominal Pressure 25
Brides plates a souder DIN 2503 pression nominale 25
DIN 2503 PN25 (in mm)

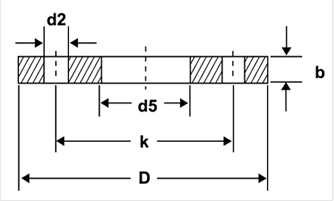

Nominal Pipe Size	Diameter of	Flange I.D	Flange Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes	Weight
DN	Pipe	D5	D	B	K	holes	D2	KG
10	17.2	17.7	90	16	60	4	14	0.69
15	21.3	22	95	16	65	4	14	0.77
20	26.9	27.6	105	18	75	4	14	1.05
25	33.7	34.4	115	18	85	4	14	1.25
32	42.4	43.1	140	18	100	4	18	1.83
40	48.3	49	150	18	110	4	18	2.09
50	60.3	61.1	165	20	125	4	18	2.74
65	76.1	77.1	185	22	145	8	18	3.48
80	88.9	90.3	200	24	160	8	18	4.33
100	114.3	115.9	235	24	190	8	22	5.61
125	139.7	141.6	270	26	220	8	26	7.6
150	168.3	170.5	300	28	250	8	26	9.58
175	193.7	196.1	330	28	280	12	26	10.76
200	219.1	221.8	360	30	310	12	26	13.37
250	273	276.2	425	32	370	12	30	18.45
300	323.9	327.6	485	34	430	16	30	23.79
350	355.6	359.7	555	38	490	16	33	37.77
400	406.4	411	620	40	550	16	36	45.41
500	508	513.6	730	44	660	20	36	65.97
600	610	616.5	845	50	770	20	39	93.57
700	711	716	960	52	875	24	42	117.53
800	813	818	1085	56	990	24	48	156.34
900	914	920	1185	62	1090	28	48	188.57
1000	1016	1022	1320	68	1210	28	56	255.79
