ASME B16.47 Class 300 Series A Blind Flanges Approximate Weight 1079-7274 Lbs

Product Details

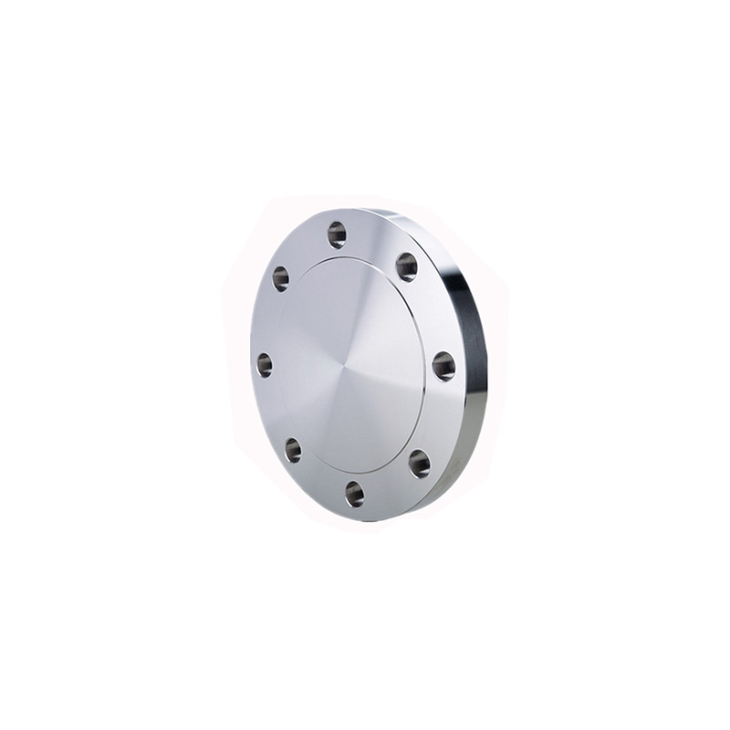

EO Flanges can provide ASME B16.47 Class 300 Series A Blind Flanges, which Raised Face Diameter from 29.5 to 59.75 in, Approximate Weight from 1079 to 6099 lbs, Bolt Circle from 34.5 to 67 in. etc. A blind flange is a popular type of pipe flange. It has no bore in the center, and is primarily used to close the ends of piping systems. This flange premits easy access to a line once it has been sealed. It sometimes can be machined to accept a nominal sizes pipe to which a threaded or welded reduction is being made. EO blind flanges are available in various sizes and material for you to choose from.


ASME B16.47 Class 300 Series A Blind Flanges

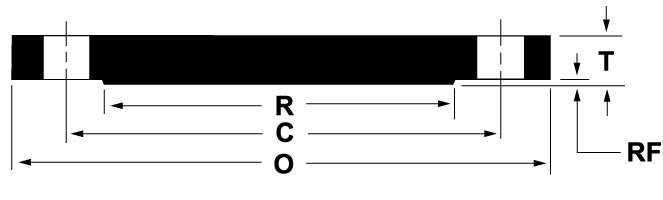

Nominal Pipe Size	Outside Diameter (O)	Thickness (T)	Raised Face Diameter (R)	Approximate Weight (lbs)	Bolt Circle (C)	Number of Holes	Diameter of Holes
26	38.25	3.31	29.5	1079	34.5	28	1.75
28	40.75	3.56	31.5	1315	37	28	1.75
30	43	3.75	33.75	1545	39.25	28	1.88
32	45.25	3.94	36	1795	41.5	28	2
34	47.5	4.12	38	2068	43.5	28	2
36	50	4.38	40.25	2435	46	32	2.12
38	46	4.25	40.5	2001	43	32	1.62
40	48.75	4.5	42.75	2380	45.5	32	1.75
42	50.75	4.69	44.75	2689	47.5	32	1.75
44	53.25	4.88	47	3079	49.75	32	1.88
46	55.75	5.06	49	3500	52	28	2
48	57.75	5.25	51.25	3896	54	32	2
50	60.25	5.5	53.5	4442	56.25	32	2.12
52	62.25	5.69	55.5	4906	58.25	32	2.12
54	65.25	6	57.75	5684	61	28	2.38
56	67.25	6.06	59.75	6099	63	28	2.38
58	69.25	6.25	62	6669	65	32	2.38
60	71.25	6.44	64	7274	67	32	2.38
