Germany Standard Flanges DIN Standard 2642 PN10 Lap Joint Flanges

The DIN 2641 PN6 Lap Joint Flange contains marking such as Lot no, Steel Grade, outside diameter, Size & dimension, Wall thickness including Devdeep Steel Alloys Brand Mark. For customised marking you can contact us. We guarantee the fastest delivery for products in country, because of well...

Product Details

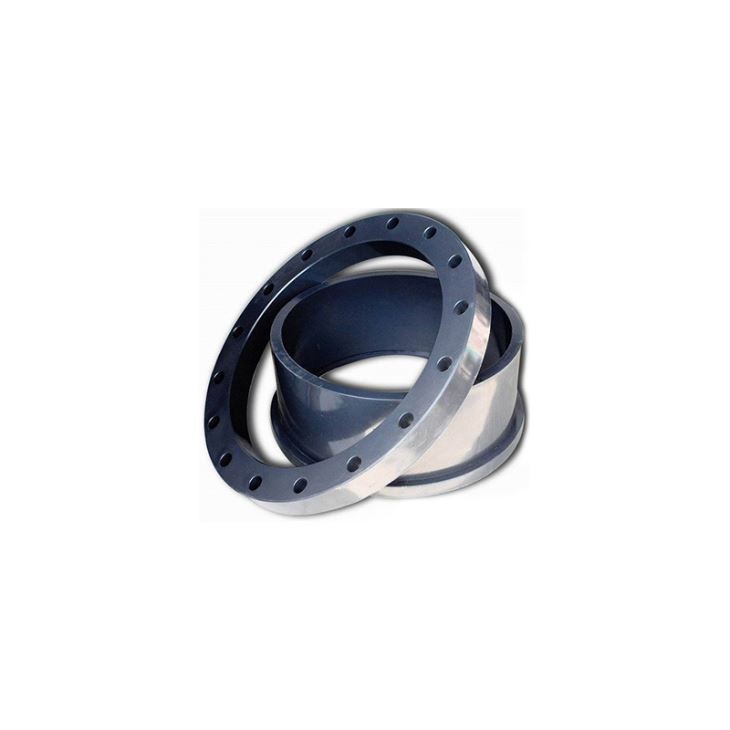

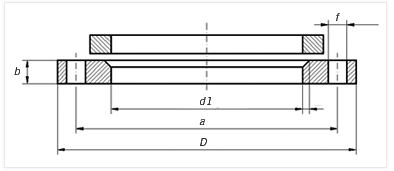

Germany standard flange DIN 2642 lapped flange; nominal pressure 10
Pipe			Flange					Screws			Weight
											(7,85 Kg/dm3)
Rated	d1		D	d6	b	k	e	Holes	Thread	d2	Kg
Diameter	ISO	DIN
	Series 1	Series 2
15	-	20	95	22	14	65	3	4	M 12	14	0,689
	21,3	-		24
20	-	25	105	28	14	75	3	4	M 12	14	0,806
	26,9	-		30
25	-	30	115	33	16	85	4	4	M 12	14	1,11
	33,7	-		36
32	-	38	140	42	16	100	4	4	M 16	18	1,64
	42,4	-		46
40	-	44,5	150	50	16	110	4	4	M 16	18	1,86
	48,3	-		54
50	-	57	165	62	16	125	5	4	M 16	18	2,20
	60,3	-		65
65	76,1	-	185	81	16	145	5	4	M 16	18	2,62
80	88,9	-	200	94	18	160	5	8	M 16	18	3,32
100	-	108	220	113	18	180	5	8	M 16	18	3,67
	114,3	-		119
125	-	133	250	138	18	210	5	8	M 16	18	4,54
	139,7	-		145
150	-	159	285	164	18	240	5	8	M 20	22	5,60
	168,3	-		173
200	219,1	-	340	225	20	295	5	8	M 20	22	7,46
250	-	267	395	273	22	350	5	12	M 20	22	10,30
	273	-		279
300	323,9	-	445	329	26	400	5	12	M 20	22	14
350	355,6	-	505	362	28	460	6	16	M 20	22	18,50
	-	368		374
400	406,4	-	565	413	32	515	6	16	M 24	26	25
	-	419		426
-450	457	-	615	467	38	565	6	20	M 24	26	30,60
500	508	-	670	517	38	620	6	20	M 24	26	37
600	610	-	780	618	44	725	7	20	M 27	30	56,30
700	711	-	895	721	50	840	7	24	M 27	30	80,40
800	813	-	1015	824	56	950	7	24	M 30	33	113,20
