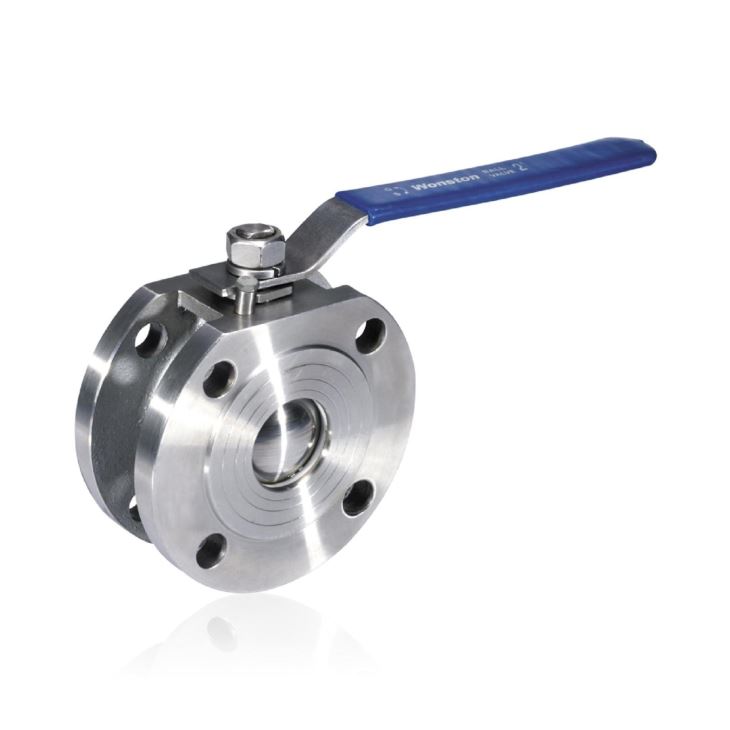

1 PC Wafer Flange Cast Steel Floating Ball Valve

1 PC wafer flange cast steel floating ball valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover, it can be quickly opened and closed by only rotating 90°, and the operation is simple, and the valve has good fluid control characteristics. When the ball valve is in the fully open position, the thickness of the valve plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is small, so it has better flow control characteristics.

Product Details

Products Description :

1 PC Wafer Flange Ball Valve

316 Stainless Steel Body, Ball and Stem

Blow Out Proof Stem

RTFE Ball Seats Extend Cycle Life and Reduce Torque

Triple RTFE/Viton Stem Seal Design, Live Loaded

Latch Locking Handle (Padlockable)

Actuator Ready ISO5211 Direct Mounting Pad

Anti-Static Design

1-pc-wafer-flange-ball-valve201801311800596435984

Main Parts and Materials

1	Body	A105/F316/F304	7	Thrust Washer	RTFE
2	Cap	A105/F316/F304	8	Packing Gland	SS316/SS304
3	Seat	RTFE	9	Nut	SS/SS316/SS304
4	Ball	ASTM A351-CF8M(316)	10	Handle	SS
5	Stem	A105/F316/F304	11	Handle Cover	Plastic
6	Packing	PTFE	12	Gasket	RTFE

Main Dimensions

NPS	DN	d	D	L	H	W	Weight(kg)
1/4"	8	5	21	43	34	70	0.11
3/8"	10	7	25	47	37	70	0.18
1/2"	15	9	30	62.5	60	120	0.34
3/4"	20	12.5	36	70	64	120	0.54
1"	25	16	46	86	66	123	0.95
11/4"	32	20	55	94	78	145	1.4
11/2"	40	24.5	61	102	84	150	1.7
2"	50	32	75	115	91	150	2.78

PACKAGING & DELIVERY :

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
