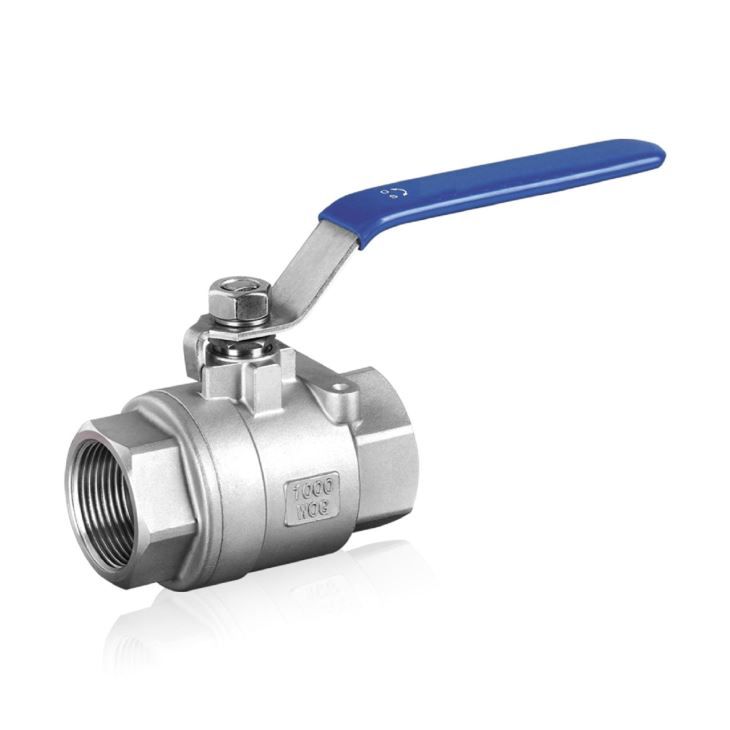

2 PC Internal Thread Ball Valve

Products Description :

The two-piece internal thread ball valve is also called a two-piece ball valve. The main ends are connected by RC internal thread. The two-piece internal thread ball valve body is mainly composed of two parts, so it is also called two-piece, two-piece ball valve. The diameter of the valve body is slightly larger than that of a one-piece type, and it is also one of the commonly used valves in chemical machinery, food machinery, and civil water heating engineering pipelines.
1/2' Threaded Brass Ball Valve with Waste Outlet (cap included), Full Port. Connections: 1/2'' NPT threaded on both ends.


2 PC Ball Valve Male Threaded End Technical Specifications:

1/4-Turn Steel Handle;

600 WOG / 150 SWP;

Blow Out Proof Stem

Side Waste Outlet w/ Cap;

Teflon Seats;

Threaded Ends Meet w/ ANSI B2.1;

2 PC Ball Valve Male Threaded End Cross-Reference:

American Valve: T200W-1/2

Apollo/Conbraco: 95A-303

Matco-Norca: 754DT3

Watts: 1/2 IT6300

Webstone Valves: 40622

Main Parts and Materials

PACKAGING & DELIVERY :

Packaging details :   electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details   :   4-5 weeks after receipt of down payment by T/T

Payment         ：  T/T, L/C, Western Union and PayPal
