ANSI B16.5 Class 2500 Plate Flanges Raised Face Diameter 1.38-15 in

ANSI B16.5 Class 2500 Plate Flanges Raised Face Diameter 1.38-15 in

All dimensions are in inches. Material Carbon steel(A36, A105, A266, ST37.2, C22.8, S235JR, S275JR, S355JR) Plate material(A515 Gr60/70,A516 Gr60/70,A285GrA B C,A240 304,A240 316) Low Temp Carbon steel (A350 LF2 ,A350 LF3) High Yield Carbon steel (A694 F42/F46/F52/F56/F60/F65/F70) Stainless...

Product Details


  • All dimensions are in inches.

  • Material


Carbon steel(A36, A105, A266, ST37.2, C22.8, S235JR, S275JR, S355JR)

Plate material(A515 Gr60/70,A516 Gr60/70,A285GrA B C,A240 304,A240 316)

Low Temp Carbon steel (A350 LF2 ,A350 LF3)

High Yield Carbon steel (A694 F42/F46/F52/F56/F60/F65/F70)

Stainless steel (A182 F304/L, F304H, F316/L, F321)

Low alloy steel (A182 F1, F5,F9,F11, F12, F22)



EO Flanges can provide ANSI B16.5 Class 2500 Plate Flanges, which Nominal Pipe Size from 1/2 to 12 in, Outside Diameter from 5.25 to 30 in, Thickness from 1.19 to 7.25 in, etc. EO flange has provided the highest quality custom forgings flanges for a wide range of industries since 2006, especially on shipbuilding industry, our team of specialists with over 20 years experience in shipbuilding industry, will help you find the right solution for your customized flanges.

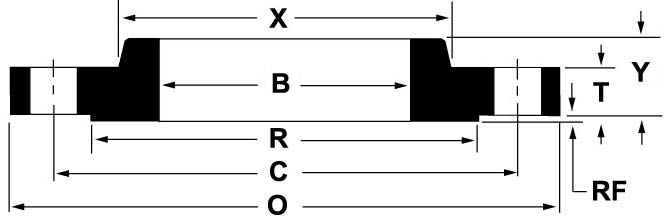

ANSI B16.5 Class 2500 Plate Flanges

Nominal Pipe Size

Outside Diameter (O)

Thickness (T)

Raised Face Diameter (R)

Length Thru Hub (Y)

Hub Diameter (X)

Bore (B)

Approximate Weight (lbs)

Bolt Circle (C)

Number of Holes

Diameter of Holes

 1/2

5.25

1.19

1.38

1.56

1.69

0.88

7

3.5

4

0.88

 3/4

5.5

1.25

1.69

1.69

2

1.09

8

3.75

4

0.88

1

6.25

1.38

2

1.88

2.25

1.36

11

4.25

4

1

1 1/4

7.25

1.5

2.5

2.06

2.88

1.7

16

5.13

4

1.13

1 1/2

8

1.75

2.88

2.38

3.13

1.95

22

5.75

4

1.25

2

9.25

2

3.63

2.75

3.75

2.44

38

6.75

8

1.13

2 1/2

10.5

2.25

4.13

3.13

4.5

2.94

55

7.75

8

1.25

3

12

2.63

5

3.63

5.25

3.57

83

9

8

1.38

4

14

3

6.19

4.25

6.5

4.57

125

10.75

8

1.63

5

16.5

3.63

7.31

5.13

8

5.66

210

12.75

8

1.88

6

19

4.25

8.5

6

9.25

6.72

325

14.5

8

2.13

8

21.75

5

10.63

7

12

8.72

485

17.25

12

2.13

10

26.5

6.5

12.75

9

14.75

10.88

930

21.25

12

2.63

12

30

7.25

15

10

17.38

12.88

1100

24.38

12

2.88
