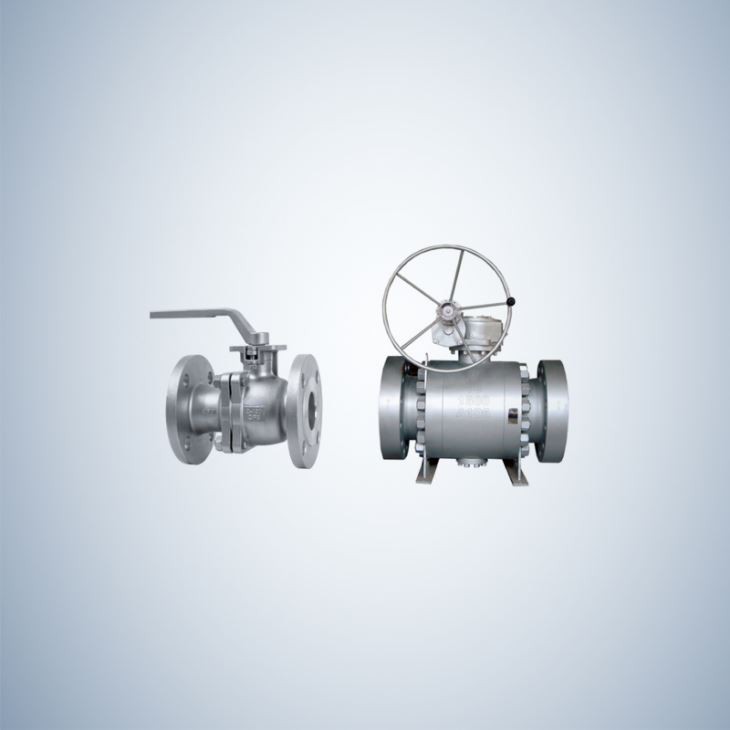

3 PC Cast Steel Mounted Trunnion Ball Valve

Products Description :

The 3 PC cast steel mounted trunnion ball valve divides the valve body into two parts along the cross section perpendicular to the valve channel axis in the two valve seat parts. The whole valve high pressure forged steel ball valve is symmetrically symmetrical along the central axis of the valve stem. The pipeline is mainly used to cut, distribute and change the direction of medium flow.

Product Specifications :

Working pressure: 1.0Mpa-42.0Mpa.

Working temperature: -46+550 °C.

Connection method: flange, welding, butt welding, socket welding, etc.

Manufacturing standards: GB, JB, HG, American standard API, ANSI, British standard BS, Japanese JIS, JPI, etc.

Body material: forged steel, A105

Applicable temperature: -196 ~ 450 ° C;

Drive mode: manual, pneumatic, electric, hydraulic, turbine, etc.;

Nominal diameter: 1/2"~12";

Nominal pressure: 150LB~1500LB;

Applicable medium: water, gas, oil, natural gas and acid-alkaline corrosion medium.

PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
