Hydraulic Actuator Butterfly Valve

The hydraulically actuator butterfly valve is a kind of valve hydraulic device. It is made up of a hydraulic actuator and a butterfly valve. Therefore, it has the advantages of simple operation and simple structure of the butterfly valve. It is small in size and light in weight. It consists of a few parts. It was subsequently widely used in chemical, pharmaceutical and other industries. The working principle of the hydraulic butterfly valve is to drive the valve stem through the hydraulic device, so that the butterfly plate produces a 90° rotary motion to achieve the valve switch.

Product Details

Quick Details
Standard or Nonstandard:	API 600
Structure:	GA-P Series Pressure Seal butt weld 6 inch electric gate valve
Pressure:	150#
Power:	Manual&Motorized&Penumatic
Material:	WCB,CF8,CF8M,CF3,CF3M,GR4A,WC6,WC9,C5,LCB,LCC,WCC
Temperature of Media:	Normal Temperature
Media:	Gas,Oil,Acid medium
Port Size:	2" ~ 48"
Place of Origin:	China (Mainland)
Model Number:	D371X -150lb-12"
Brand Name:	EO
Application:	General
Product Name:	Hydraulic actuator butterfly valve from alibaba china market
Size:	DN50 ~ DN1200 (2" ~ 48")
Class:	PN10 ~ PN16 (150PSI ~ 200PSI)
Design:	API609
Face to Face:	DIN3202, ISO 5752
Flange:	Flange
Test:	API598

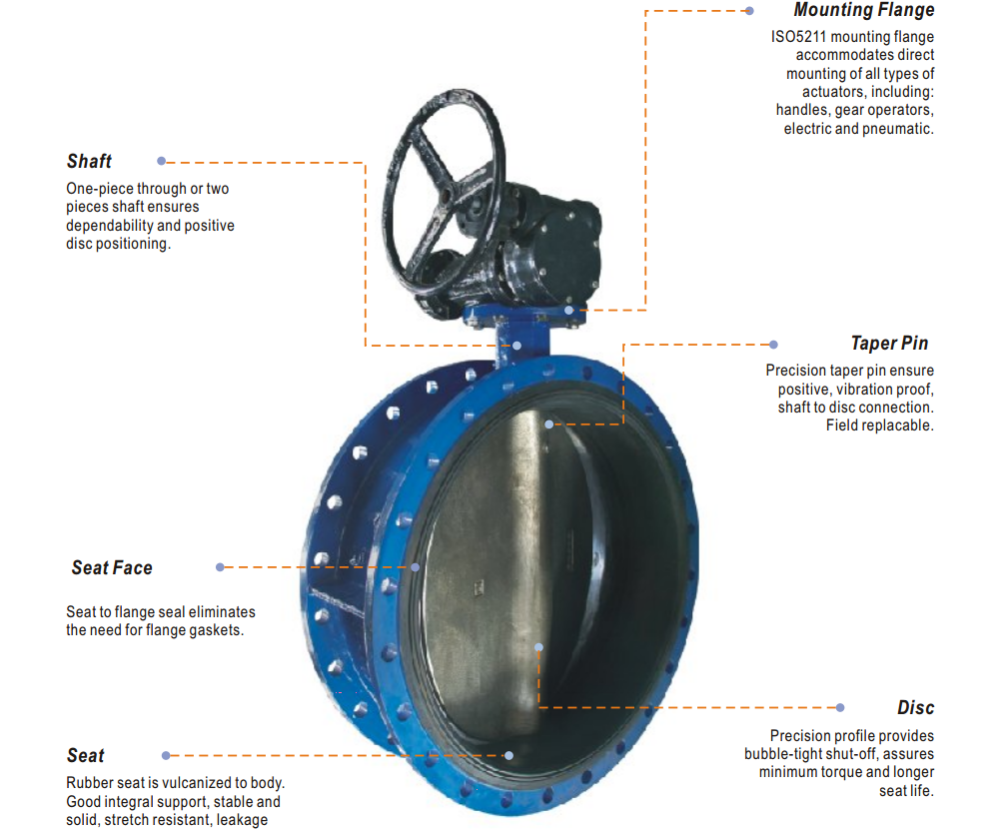

Features
Size: DN50 ~ DN1200 (2" ~ 48");
Class: PN10 ~ PN16 (150PSI ~ 200PSI)
Double Flanged Type
Pin through One Piece or Two Pieces Shaft
Concentric Disc
Vulcanized Rubber Seat
Bubble Tight Shut Off
ISO5211 Top Flange

Specification

Design

Face to Face

Flange

Test

API609

DIN3202, ISO 5752

DIN, BS, UNI, ISO, ANSI
API598
