DIN Standard 2501 PN16 Plate Flanges Dia of Bolt Circle 65-1170 Mm

EO Flanges can provide DIN 2501 PN16 Plate Flanges, which Diameter of Bolt Circle from 65 to 1170 mm, Diameter of Bolt Holes from 14 to 42 pcs, etc. Carbon Steel Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70...

Product Details


EO Flanges can provide DIN Standard 2501 PN16 Plate Flanges Dia of Bolt Circle 65-1170 mm, Diameter of Bolt Holes from 14 to 42 pcs, etc.

Carbon Steel Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Alloy Steel Flanges: ASTM A182 F1, F5, F9, F11, F22, F91 Alloy Steel Flanges

Special Alloy Flanges: Duplex Steel 2205, Super Duplex 2507 Flanges, Nickel Alloys

Flange Face Type: Flat Face (FF) Flange, Raised Face (RF) Flange, Ring Type Joint (RTJ) Flange

DIN Standard 2501 PN16 Plate Flanges Dia of Bolt Circle 65-1170 mm coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized Value Added Services: CNC Machining, Customized Flanges

DIN Standard 2501 PN16 Plate Flanges Dia of Bolt Circle 65-1170 mm Parameters

Germany standard flange DIN 2501 for soldering or welding Nominal Pressure 16
Brides plates a souder DIN 2501 pression nominale 16

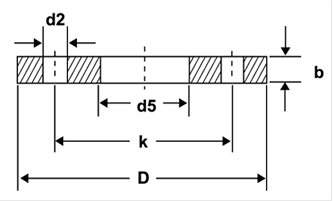

DIN 2501 PN 16 PLATE FLANGE DIMENSIONS (in mm)
Nominal Pipe Size	Diameter of	Flange Dia	Flange I.D	Thk of Flanges	f	Dia of Bolt Circle	No. of	Dia of Bolt Holes	Weight
Nominal Pipe Size	Diameter of	Flange Dia	Flange I.D	Thk of Flanges	f	Dia of Bolt Circle	No. of	Dia of Bolt Holes	PLATE	BLIND
DN	Pipe	D	D5	B		K	holes	D2	KG	KG
15	21.3	95	22	14	2	65	4	14	0.67	0.71
20	26.9	105	27.6	16	2	75	4	14	0.93	1.01
25	33.7	115	34.4	16	2	85	4	14	1.11	1.23
32	42.4	140	43.1	16	2	100	4	18	1.62	1.81
40	48.3	150	49	16	3	110	4	18	1.85	2.09
50	60.3	165	61.1	18	3	125	4	18	2.46	2.88
65	76.1	185	77.1	18	3	145	4	18	2.99	3.65
80	88.9	200	90.3	20	3	160	8	18	3.61	4.61
100	114.3	220	115.9	20	3	180	8	18	3.99	5.65
125	139.7	250	141.6	22	3	210	8	18	5.41	8.13
150	168.3	285	170.5	22	3	240	8	22	6.55	10.44
175	193.7	315	196.1	24	3	270	8	22	8.42
200	219.1	340	221.8	24	3	295	12	22	8.97	16.48
250	273	405	276.2	26	3	355	12	26	12.76	23.99
300	323.9	460	327.6	28	3	410	12	26	16.6	30.73
350	355.6	520	359.7	30	4	470	16	26	24.08	42.56
400	406.4	580	411	32	4	525	16	30	30.2	60.68
450	457	640	462.3	38	4	585	20	30	41.67	71.74
500	508	715	513.6	38	4	650	20	33	52.87	96.4
600	610	840	616.5	42	4	770	20	36	77.58	145.6
700	711	910	716	44		840	24	36	77.13
800	813	1025	818	50		950	24	39	106.35
900	914	1125	920	54		1050	28	39	125.39
1000	1016	1255	1022	60		1170	28	42	177.99

1.	Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
2.	Minimum Order Quantity: 1Ton or 100Pcs.
