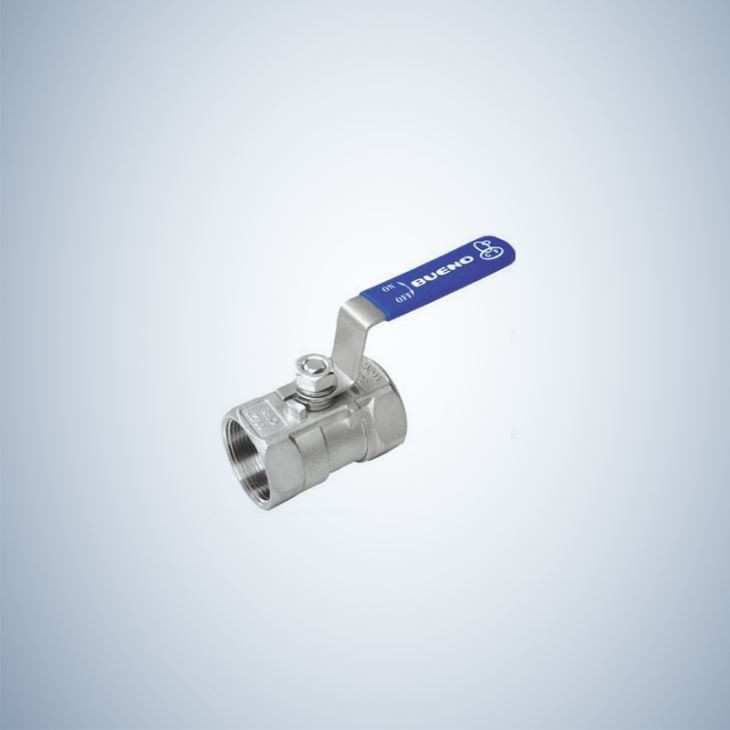

Cast Steel 1 Piece Threaded Ball Valve

The closing piece of the cast steel 1 piece threaded ball valve is a ball, and the ball rotates around the center line of the valve body to open and close a valve. The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium.

Product Details

Products Description :

Material

Part Name	Mareial
Body	ASTM A351	GR.CF8M/CF8
Body Collar	ASTM A276	GR.316/314
Ball	ASTM A351	GR.CF8M/CF8
Central axis	ASTM A276	GR.CF8M/CF8
Pad	PTFE
Handle	ASTM A276	GR.CF8M/CF8

Standards

Nominal pressure	PN	1.6, 2.5, 4.0, 6.4			MPA
Strength testing pressure	PT	2.4, 3.8, 6.0, 9.6
Gas sealing testing pressure(low pressure)	0.6
Sealing testing pressure(high pressure)	1.8, 2.8, 4.4, 7.1
Applicable medium	Q11F-(16-64)C		Q11F-(16-64)P	Q11F-(16-64)R
	Water, Oil, Gas		citric acid	Acetic acid
Applicable temperature	-40~180°C

Main external dimensions:

DN	G	d	L	H	W
6	1/4"	5	40	28	70
10	3/8"	7	45	30	70
15	1/2"	9	56	34	90
20	3/4"	12	60	38	90
25	1"	15	70	50	110
32	1¼"	20	80	56	120
40	1½"	25	85	60	130
50	2"	32	100	65	140
65	2½"	38	118	72	180

PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
