Product Details
Product Description

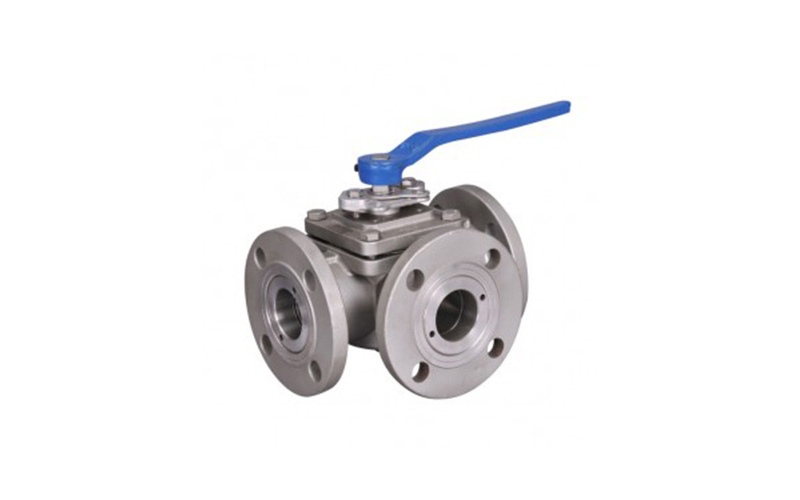

Manual three-way stainless steel flange ball valves are available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | 150lb |
| Power: | Manual |
| Material: | Stainless Steel |
| Temperature of Media: | High Temperature |
| Media: | compressed air, fuel and lightly corrosive |
| Port Size: | 1/2"~24" |
| Place of Origin: | China (Mainland) |
| Model Number: | Q44F-150lb |
| Brand Name: | EO |
| Application: | industrial and chemical applications |
| Product name: | Full Bore Flanged ANSI 150 Stainless Steel Ball Valve 3 Way Manual |
| Body material: | Stainless Steel 316 |
| Connection: | ANSI CLASS 150/300 |
| Certificate: | API |
| Standard: | ANSI B16.1 |
| Type: | FULL BORE |
| Color: | Customer's Request |
| Medium: | Corrosive Fluid |
| Size: | 1/4''--24'' |
Features:
Available in ANSI 150, L or T Port, sizes: 1" to 4".
Temperature range: -10 °C to 120°C.
Pressure rating: Class 150.
Insulated grip, lockable lever handle.
Movement: 90° turn.
Ports: L or T port.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
Hot Tags: manual three way stainless steel flanged ball valve, China, manufacturers, suppliers, factory, cheap, customized
