45 Degree Pipe Elbow

45 Degree Pipe Elbow

NAME: 45 Degree Pipe Elbow

Delivery Port: Dalian, China

PRICE TERM: EXW, FOB, CFR, CIF, etc.

PAYMENT TERM: T/T, L/C at sight, etc.

Product Details

EO Flanges are Manufacturer, Exporter and Supplier of 45 Degree Pipe Elbow. The 45 Degree Pipe Elbow manufactured using superior grade raw materials. 45 Degree Pipe Elbows are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.

We have adopted advanced production equipment to make our 45 Degree Pipe Elbow (1D D711.2～D1219.2), which can not only improve product quality, but also save raw materials.

45 Degree Pipe Elbow Size:

Seamless elbow: 1/2"～24"DN15～DN600

Welding elbow: 6"～72" DN150～DN1800

Wall Thickness:

sch10, sch20, sch30, sch40, sch60, sch80, sch100, sch120, sch140, sch160, sch5s, sch20s, sch40s, sch80s

Max wall thickness: 200mm

Materials

Carbon steel: ASTM/ASME A234 WPB-WPC

Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911

Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti

ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H

Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6

High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Industrial Processes

Bending, squeezing, pressing, forging, machining and more

Industries Served

Our pipe elbows are widely used in many industries, such as power generation, petroleum, natural gas, chemicals, shipbuilding, heating, papermaking, metallurgy and so on.

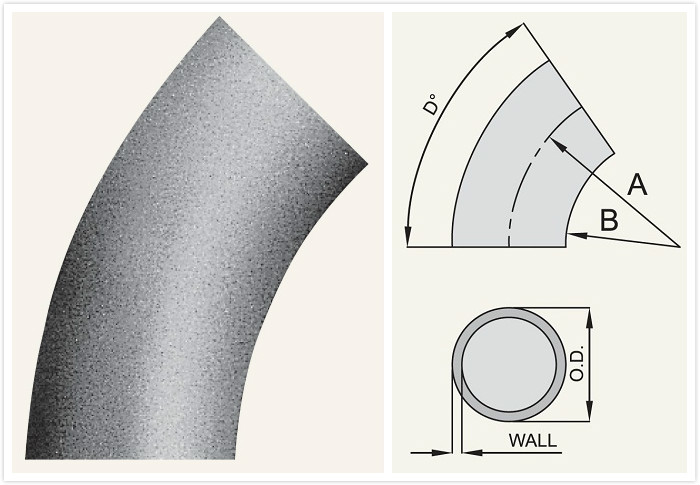

Pipe Elbow图纸.jpg



45 Degree Pipe Elbow Standard Dimensions table:

Nominal

Outside

Inside

Wall

Center

Pipe

Weight

Pipe Size

Diameter

Diameter

Thickness

To End

Schedule

Pounds

1/2

0.84

0.622

0.109

1.5

40

0.16

3/4

1.05

0.824

0.113

1.5

40

0.17

1

1.32

1.049

0.133

1.5

40

0.4

1 1/4

1.66

1.38

0.14

1.88

40

0.55

1 1/2

1.9

1.61

0.145

2.25

40

0.8

2

2.38

2.07

0.154

3

40

1.6

2 1/2

2.88

2.47

0.203

3.75

40

3.2

3

3.5

3.07

0.216

4.5

40

4.8

3 1/2

4

3.55

0.226

5.25

40

6.6

4

4.5

4.03

0.237

6

40

8.9

5

5.56

5.05

0.258

7.5

40

15.1

6

6.62

6.07

0.28

9

40

24

8

8.62

7.98

0.322

12

40

47.8

10

10.75

10.02

0.365

15

40

83.4

12

12.75

12

0.375

18

*

123

14

14

13.25

0.375

21

30

155

16

16

15.25

0.375

24

30

206

18

18

17.25

0.375

27

*

262

20

20

19.25

0.375

30

20

324

24

24

23.25

0.375

36

20

466

30

30

29.25

0.375

45

*

720

36

36

35.25

0.375

54

*

1,039

42

42

41.25

0.375

63

*

1,420

48

48

47.25

0.375

72

*

2,000


45 Degree Pipe Elbow Extra Strong Dimensions table:

Nominal

Outside

Inside

Wall

Center

Pipe

Weight

Pipe Size

Diameter

Diameter

Thickness

To End

Schedule

Pounds

1/2

0.84

0.546

0.147

1.5

80

0.26

3/4

1.05

0.742

0.154

1.5

80

0.29

1

1.32

0.957

0.179

1.5

80

0.48

1 1/4

1.66

1.27

0.191

1.88

80

0.79

1 1/2

1.9

1.5

0.2

2.25

80

1.2

2

2.37

1.93

0.218

3

80

2.1

2 1/2

2.88

2.32

0.276

3.75

80

3.8

3

3.5

2.9

0.3

4.5

80

6.3

3 1/2

4

3.36

0.318

5.25

80

8.6

4

4.5

3.82

0.337

6

80

12.5

5

5.56

4.81

0.375

7.5

80

21.2

6

6.63

5.76

0.432

9

80

34.4

8

8.63

7.63

0.5

12

80

71.3

10

10.75

9.75

0.5

15

60

111

12

12.75

11.75

0.5

18

*

158

14

14

13

0.5

21

*

201

16

16

15

0.5

24

40

270

18

18

17

0.5

27

*

348

20

20

19

0.5

30

30

422

24

24

23

0.5

36

*

604

30

30

29

0.5

45

20

997

36

36

35

0.5

54

20

1,380

42

42

41

0.5

63

*

1,880

48

48

47

0.5

72

*

2,502




Production flow of 45 Degree Pipe Elbow

Packaging for 45 Degree Pipe Elbow in bundles wrapped with strong steel strip, seaworthy packing, or according to customers’ requirements.

Delivery of 45 Degree Pipe Elbow is normally 15-30days after receiving T/T deposit


Q: Are you a trading company or a manufacturer?

A: we are factories, and we do trade as well

Question: how long is your delivery time of 45 Degree Pipe Elbows?

A: If 45 Degree Pipe Elbows are in stock, it usually takes 5-10 days. If 45 Degree Pipe Elbows are not in stock, they are for 15-20 days, according to quantity.

Q: Do you provide 45 Degree Pipe Elbows samples? Is it free or extra?

A: Yes, we can supply the 45 Degree Pipe Elbows sample free of charge, but we don't pay the freight.

Q: What are your terms of payment for 45 Degree Pipe Elbows?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
