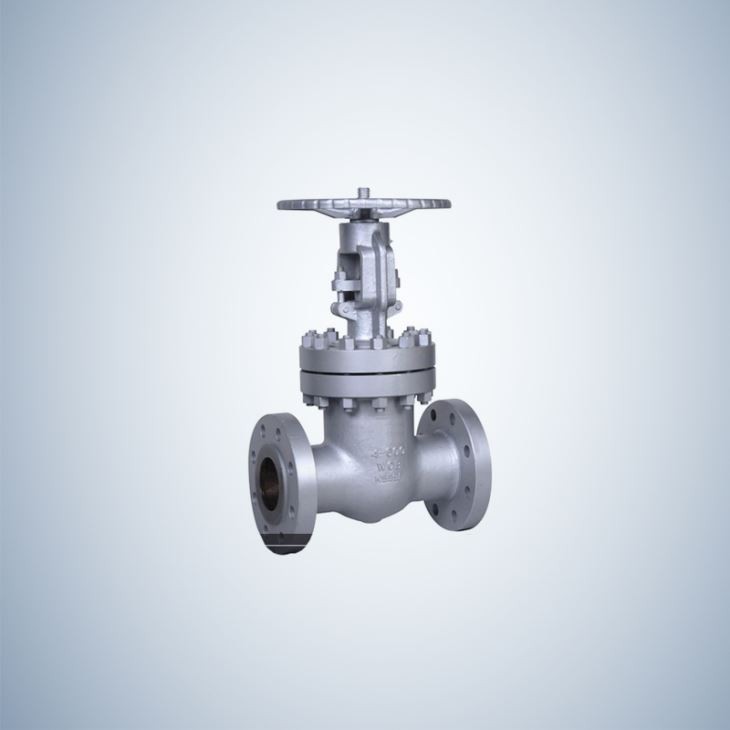

Stainless Steel Flange Casting B.B Gate Valve

Products Description :

The opening and closing part of the stainless steel flange casting B.B gate valve is the ram. The movement direction of the ram is perpendicular to the fluid direction. The gate valve can only be fully open and fully closed, and cannot be adjusted and throttled.

Design Features:

1. The selection of materials is in line with relevant domestic and international standards, and the overall quality of materials is high.

2. It meets the requirements of advanced standards at home and abroad, with reliable sealing, excellent performance and beautiful appearance.

3. The sealing pair is advanced and reasonable. The sealing surfaces of the gate and the valve seat are made of Stellite cobalt-based hard alloy with different hardness. The sealing is reliable, high hardness, wear resistance, high temperature resistance and corrosion resistance. Good anti-scratch performance and long life.

4. The valve stem is quenched and tempered and surface nitrided, which has good corrosion resistance, scratch resistance and wear resistance.

5. The use of wedge-type elastic ram structure, medium and large caliber thrust bearing, small friction, and equipped with impact manual, easy to open and close.

Bill of Material:

PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
