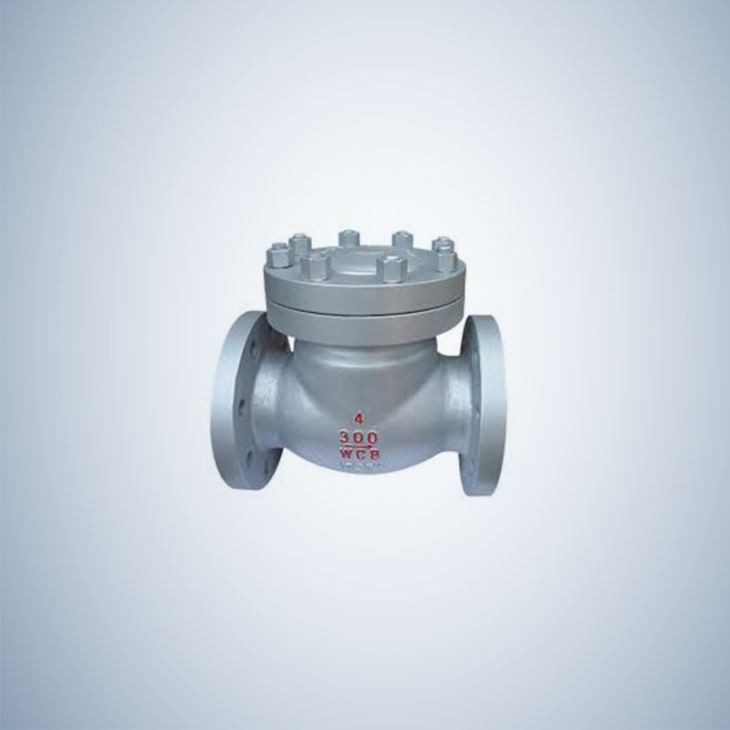

Cast Steel Flanged Swing Check Valve

Products Description :

The function of the cast steel Flanged swing check valve is to control the one-way flow direction of the medium in the pipeline to prevent the medium in the pipeline from flowing back. The check valve is an automatic valve type, and the opening and closing member is automatically opened or closed by the force of the flowing medium. The check valve is only used on the pipeline where the medium flows in one direction, preventing the medium from flowing back to prevent accidents.

Design Standard :

Size: 2"-16"

Pressure: 150LB, 300LB, 600LB

Design and manufacture: API 6D

Flanged end: ANSI B16.5

Butt-welding end: ANSI B16.25

Face to face: ANSI B16.10

Check and test: API 598, API 6D

Body material: ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M Disc&Arm: WCB, CF8, CF8M, Monel, CF3, CF3M

Arm pin: F6a, F304, F316, Monel, F304L, F316L,

Seat: 13Cr, STL, F304, F316, Monel, F304L, F316L

Disc facing: 13Cr, F304, F316, STL, Monel, F304L, F316L

PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
